Cow Dung Manure Dewatering Compost Fertilizer Production Machine Price
1. Introduction of Cow Dung Manure Dewatering Compost Fertilizer Production Machine Price
2. Work theory of Cow Dung Manure Dewatering Compost Fertilizer Production Machine Price

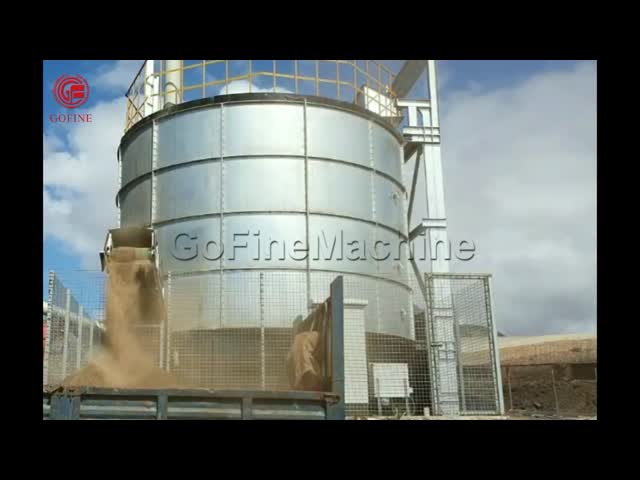

Waste composting reactor is composed of cylindrical containers, screw mixing blades and transmission parts. The cylinder structure ensures the small resistance movement of the material to be mixed in the tank. The positive and negative rotating screw is mounted on the same horizontal axis to form a low-power and efficient mixing environment. The ribbon-shaped leaves are generally made of double or three. The outer spiral of the material from both sides to the central collection, the inner layer of the material from the center to the two sides of the transport, the material can flow in the formation of more eddy current, speed up the mixing speed and fermented fully.
3. Feature of Cow Dung Manure Dewatering Compost Fertilizer Production Machine Price
4. Specification of Cow Dung Manure Dewatering Compost Fertilizer Production Machine Price
| Model | 110 |
| Diameter of cylinder (m) | 6 |
| Height of cylinder (m) | 5.5 |
| total materials(m3/d) | 102 |
| Input materials((m3/d)) | 10-12 |
| Input moisture | 50-70% |
| Output materials(m3/d) | 3-4 |
| Voltage | 380VAC, 3phs |
| hydraulic pump power (kw) | 7.5 +4kw |
| Heating power (kw) | 4kw |
| Fans power (kw) | 11*2 kw |
| Inner temperature(℃) | 0-80 |
| Bucket volume (m3) | 1.5 |
| Inner materials | SS 304 with thickness 2/3mm |
| Outside materials | Q235 + insulated fiber |
| Total weight | 34 ton |
4.1 Other size(10m3/30m3/70m3/90m3) of composting reactor can be done according to your requirement.
4.2 Equipped the deodorizing system and scrubber, but the heating exchanger is optional accordingly.
